SDS011 Fine Dust Sensor [Arduino Sensors for Everyone]

by 로니킴 2021. 6. 12.


This chapter explains how to use the SDS011 sensor. You will learn its features, operating principles, specifications, connection pin arrangement, output values, and connect Arduino and the sensor together to measure the air around you easily using the library.



Contents




    SDS011 Fine Dust Sensor














    SDS011 Sensor?

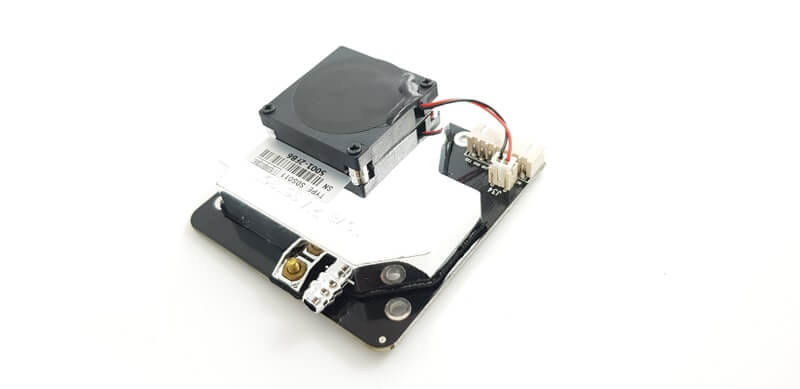

    Nova Fitness's SDS011 sensor can measure the concentration of fine dust particles between 0.3 and 10 μm in the air using the principle of laser scattering. Using digital output and its built-in fan, it is both stable and reliable.

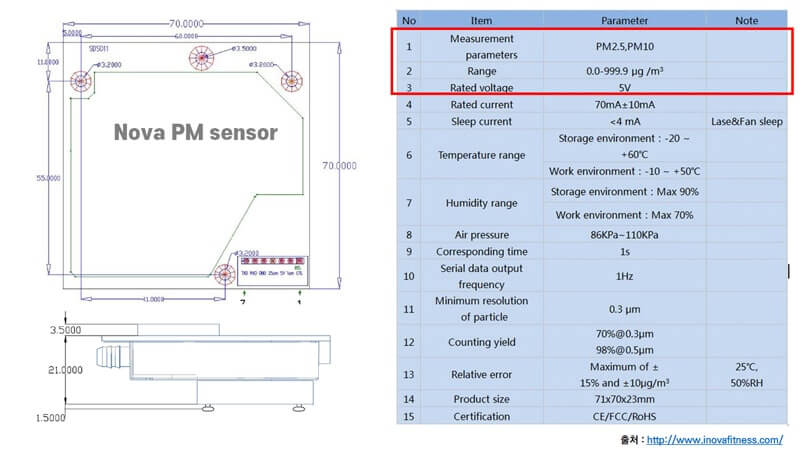

    SDS011 laser PM2.5 sensor specification-V1.2.pdf
    0.46MB
    SDS011-DATASHEET.pdf
    0.59MB










    SDS011 fine dust Arduino sensor

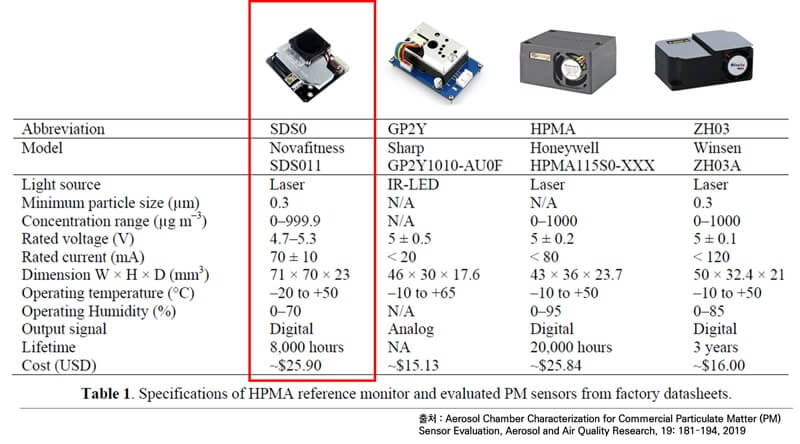

    GP2Y1010 sensors use the IR-LED method, and theSDS011, HPMA, ZH03 sensors measure fine dust with the laser method.





    The SDS011 sensor can measure PM2.5 ultra-fine dust and PM10 fine dust. The measurement range is 0~999.9 ㎍/㎥. This model has a built-in fan like the PMS7003 sensor.

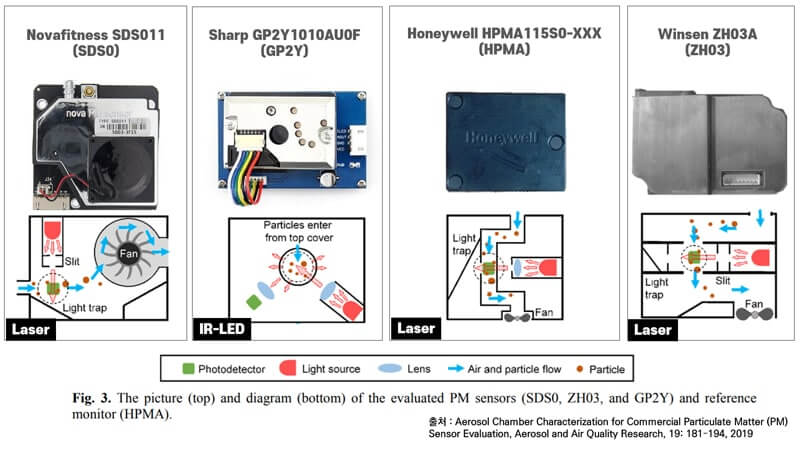

    The Aerosol and Air Quality research paper (19: 181-194, 2019) showed that the Novafitness SDS011 sensor is superior to the Sharp GP2Y1010AU0F and Winsen ZH03A sensors.










    Purchasing the SDS011 sensor

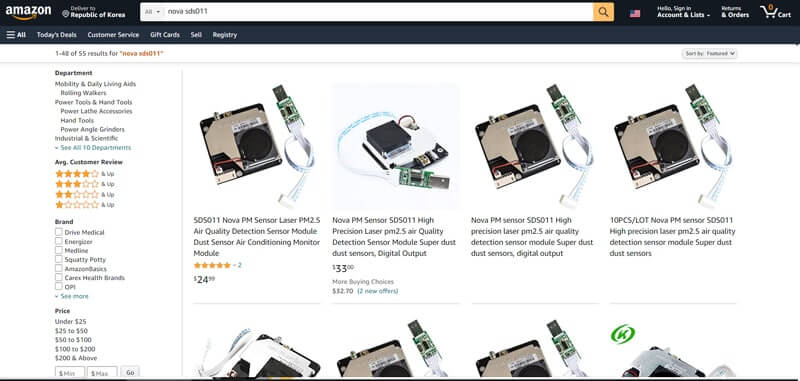

    As follows, the [SDS011] sensor used in the book [Arduino Sensors for Everyone] can be purchased at Ali Express, Amazon.
















    Software Coding

    Run the example file in Steamedu123_Sensor-master > examples.

    /*
       @205 SDS011 Fine Dust Sensor
    */

    #include <C205_Steam_Air_NovaSDS011_Dust.h>    // Internal library header file

    #define RxPIN 3
    #define TxPIN 2

    SteamNovaSDS011 novasds011(RxPIN, TxPIN); // pin number

    void setup() {
      Serial.begin(9600);     // Start serial communication at a speed of 9600bps.
      novasds011.begin();     // (1) Initialize the sensor.
    }

    void loop() {
      novasds011.read();      // (2) Measure the value of the sensor.
      novasds011.display();   // (3) Output the sensor value.
    }












    SDS011 Arduino sensor operation check

    When the hardware connection and software coding are completed, you can check the operation screen as follows.



    ------------------------------------------------------
    Development environment: WINDOWS 10
    Arduino IDE: 1.8.13
    ------------------------------------------------------



    01 library copy

    You can easily check the operation by using the  library.
    The libraries \Steamedu123_Sensor-master folder is copied to the folder below.
    * This folder is created automatically after installing Arduino C:\Users\s\Documents\Arduino\libraries


    02 *. ino file execution
    -Connect Arduino and PC
    -Run Arduino IDE
    -Menu → Tools → Board: Check Arduino UNO
    -Menu → Sketch → Check/Compile

    03 Check compilation

    Select Sketch>OK/Compile (CTRL+R) to compile.


    04 Arduino Uno upload

    When the compilation is completed without any problems, select Sketch>Upload (CTRL+U) to upload the compiled file.


    05 Operation check

    You can check the operation as follows.









    References

    The reference literature of the sensors used in this book [Arduino Sensors for Everyone] is as follows.

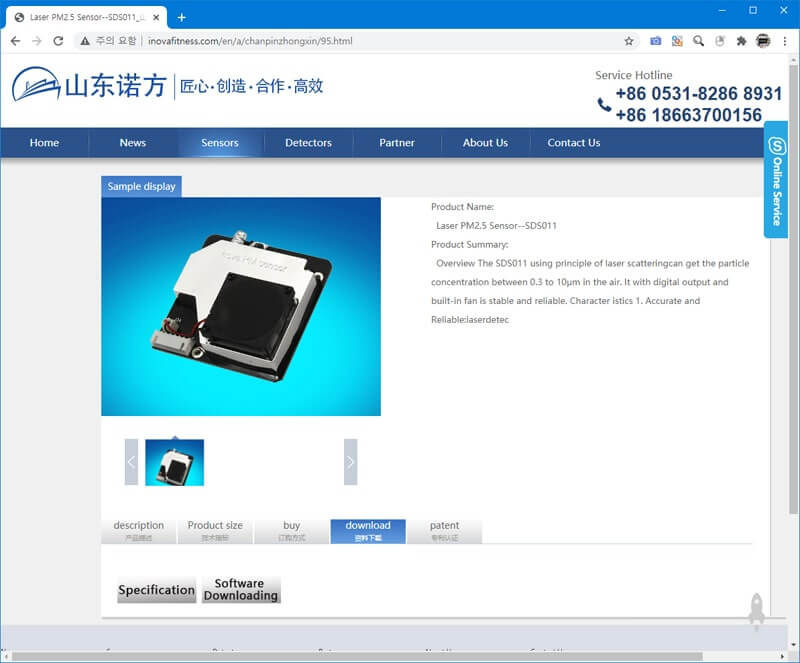

    [25] Nova SDS011 Homepage
    [26] Konstantinos N. Genikomsakis 1 ID, Nikolaos-Fivos Galatoulas 1, Panagiotis I. Dallas 2, Development and On-Field Testing of Low-Cost Portable System for Monitoring PM2.5 Concentrations, 2018
    [27] The SDS011 Air Quality Sensor experiment Real-time Air Quality readings from the SDS011
    [28] PPD42NS Datasheet, “Specification”, p1
    [29] PPD42NS Datasheet, “Interface specification”, p4~p5
    [30] PPD42NS Datasheet, “The UART communication protocol”, p5
    [31] PPD42NS Datasheet, “Basic Structure”, p8

    [32] Nova SDS011 PC 프로그램
    [32] Nova SDS011 PC Program
